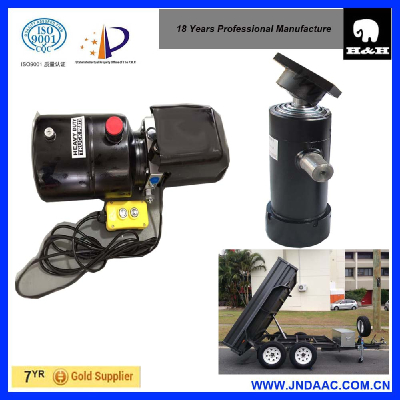

Hydraulic Telescopic ram for Tipper Truck Trailer
Introduction:
Hydraulic telescopic ram is used for dump truck, there are 3,4,5 stages for your choice, we can also produce according to your drawing.
Characteristics:
High speed, short cycling time.
High efficiency, light weight, more loading capacity.
High strength, new design, new material.
-Max working pressure reaches 190 bar,better anti-pressure ability.
-Special-purpose material, high quality, high-precision, better anti-bending ability.
-New model guide ring combined with senior lubricating material, guarantee cylinder lift more smoothly and work long time.
-Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
-New model stop collar combined with new model guide ring, maximum limit improves the working security and stability.
-Equiped with maintenance-free support, longer working life, brings you more benefit.
-Adopt "less component integration" design philosophy, easy to maintain.
-Cylinder tested 100%, guarantees high quality.
Specification of Hydraulic Telescopic Cylinder for Tipper Truck Trailer :
Specification of Trailer Hydraulic Cylinder | |||||||
Model | Working Pressure(Mpa) | Extend Stages | Max.Diametr(mm) | Max.Stroke(mm) | Lifting Capacity(tons) | Mounting Distance(mm) | Length(mm) |
2TG-E60*250 | 16Mpa | 2 | 97 | 500 | 4.36 | 137 | 437 |
2TG-E60*300 | 600 | 487 | |||||
2TG-E60*340 | 680 | 527 | |||||
2TG-E70*250 | 109 | 500 | 6.04 | 437 | |||
2TG-E70*300 | 600 | 487 | |||||
2TG-E70*340 | 680 | 527 | |||||
2TG-E80*250 | 120 | 500 | 7.89 | 437 | |||
2TG-E80*300 | 600 | 487 | |||||
2TG-E80*340 | 680 | 527 | |||||
3TG-E80*250 | 3 | 750 | 7.89 | 437 | |||
3TG-E80*300 | 900 | 487 | |||||
3TG-E80*340 | 1020 | 527 | |||||
2TG-E90*250 | 2 | 132 | 500 | 9.98 | 150 | 437 | |
2TG-E90*300 | 600 | 487 | |||||
2TG-E90*340 | 680 | 527 | |||||
3TG-E90*250 | 3 | 750 | 9.98 | 437 | |||
3TG-E90*300 | 900 | 487 | |||||
3TG-E90*340 | 1020 | 527 | |||||
3TG-E100*250 | 140 | 750 | 12.32 | 437 | |||
3TG-E100*300 | 900 | 487 | |||||
3TG-E100*340 | 1020 | 527 | |||||
4TG-E100*250 | 4 | 1000 | 12.32 | 437 | |||
4TG-E100*300 | 1200 | 487 | |||||
4TG-E100*340 | 1360 | 527 | |||||
3TG-E110*250 | 3 | 150 | 750 | 14.91 | 137 | 437 | |
3TG-E110*300 | 900 | 487 | |||||
3TG-E110*340 | 1020 | 527 | |||||
4TG-E110*250 | 4 | 1000 | 14.91 | 150 | 437 | ||
4TG-E110*300 | 1200 | 487 | |||||
4TG-E110*340 | 1360 | 527 | |||||
5TG-E145*300 | 5 | 180 | 1500 | 19 | 174 | 487 |
